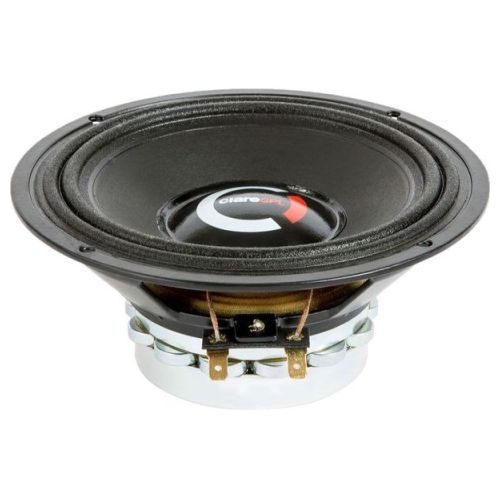

Ciare CMI160ND Low Frequency Driver 6.5 Inches SPL
Couldn't load pickup availability
Quality Assurance
Friendly support
Hassle-free returns
Payment details
Help your customers identify what payments are accepted by your store.
Voice Coil Diameter
50 mm 2 in
Continuous Power Handling
450 W
Sensitivity
94 dB
Specifications
Nominal Diameter
165 mm (6.5 in)
Nominal Power Handling
220 W
Sensitivity
94 dB
Voice Coil Diameter
50 mm (2 in)
Former Material
Kapton
Magnetic Gap Depth
8 mm (0.31 in)
Nominal Impedance
4 Ω
Continuous Power Handling
450 W
Frequency Range
70 Hz - 4000 Hz
Winding Material
Copper
Winding Depth
12.5 mm (0.49 in)
Parameters
Fs
73 Hz
Qes
0.45
Qts
0.41
Sd
137 cm² (21.24 sq²)
Xmax
4.5 mm (0.18 in)
Bl
7.8 Tm
d
132 mm (5.2 in)
Re
2.9 Ω
Qms
4
Vas
6 dm³ (0.21 ft³)
η0
0.6 %
Mms
20 g
Le
0.33 mH
EBP
162 Hz
Design
Surround Shape
Nomex Fabric
Recommended Enclosure
6 dm³ (0.212 ft³)
Recommended Loading
Vented Box
Suspension
Nomex Fabric
Cone Shape
Exponential
Recommended Tuning
70 Hz
Connection Type
Fast-On
Cone Material
Doped cellulose fiber
Mounting and Shipping Info
Overall Diameter
165 mm (6.5 in)
Baffle Cutout Diameter
145 mm (5.71 in)
Flange and Gasket Thickness
2.5 mm (0.1 in)
Shipping Units
6 pcs
Bolt Quantity
4 pcs
Bolt Circle Diameter
154.5 mm (6.08 in)
Depth
74.5 mm (2.93 in)
Net Weight
1.3 kg (2.86 lb)
Basket Material
Aluminum
Bolt Diameter
5 mm (0.2 in)
