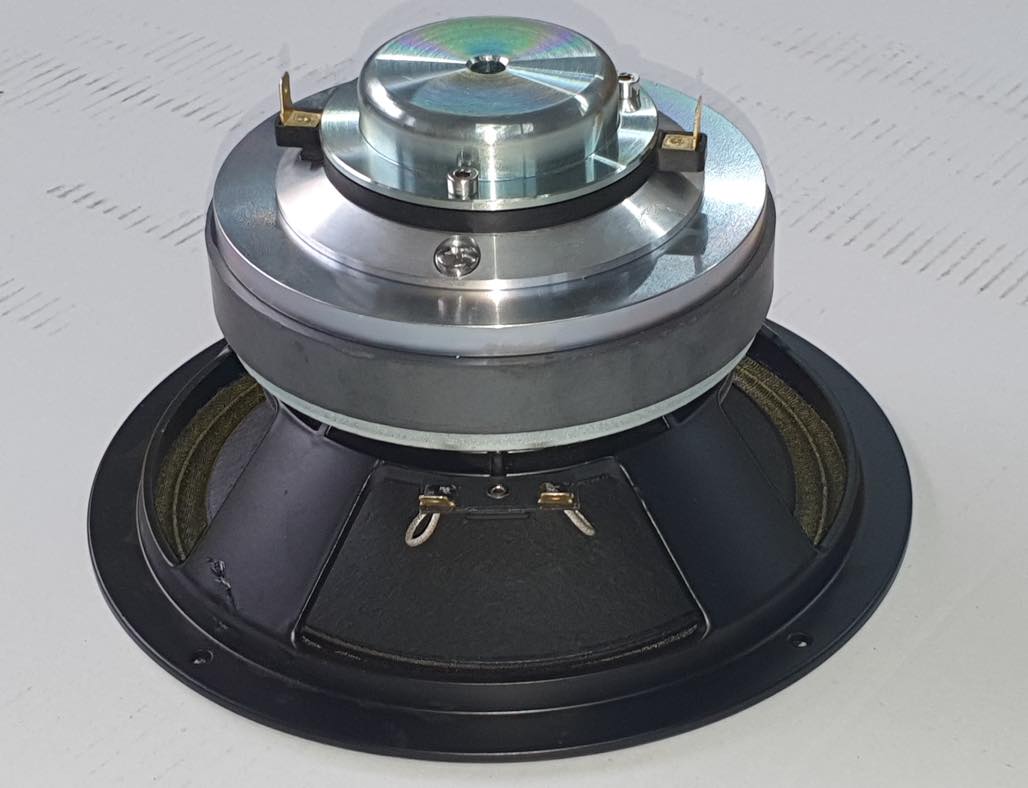

Ciare CXI160 Coaxial 6.5 Inches PRO SPL
Couldn't load pickup availability
Quality Assurance
Friendly support
Hassle-free returns
Payment details
Help your customers identify what payments are accepted by your store.
Diaphragm Material
Mylar
Voice Coil Diameter
50.8 mm 2 in
Voice Coil Diameter
44.45 mm 1.75 in
Continuous Power Handling
450 W
Continuous Power Handling
250 W
Specifications LF unit
Nominal Diameter
165.1 mm (6.5 in)
Nominal Power Handling
220 W
Sensitivity
94 dB
Voice Coil Diameter
50.8 mm (2 in)
Former Material
Glass Fiber
Nominal Impedance
4 Ω
Continuous Power Handling
450 W
Frequency Range
70 Hz - 4000 Hz
Winding Material
Copper
Winding Depth
12.5 mm (0.49 in)
Specifications HF unit
Throat Diameter
25.4 mm (1 in)
Nominal Impedance
8 Ω
Continuous Power Handling
250 W
Frequency Range
2000 kHz - 20000 kHz
Winding Material
Aluminum
Nominal Diameter
25.4 mm (1 in)
Nominal Power Handling
150 W
Sensitivity
105 dB
Voice Coil Diameter
44.45 mm (1.75 in)
Diaphragm Material
Mylar
Design
Cone Shape
Exponential
Recommended Enclosure
8 dm³ (0.28 ft³)
Recommended Loading
Vented Box
Suspension
Nomex Fabric
Magnet Material
Ferrite
Recommended Tuning
70 Hz
Connection Type
Fast-On
Cone Material
Doped cellulose fiber
Parameters
Fs
91 Hz
Qes
0.57
Qts
0.51
Sd
120 cm² (18.6 in²)
Xmax
4.5 mm (0.18 in)
Bl
6.8 Tm
d
124 mm (4.88 in)
Re
2.8 Ω
Qms
5.03
Vas
7.8 dm³ (0.28 ft³)
η0
0.53 %
Mms
15 g
Le
0.42 mH
EBP
160 Hz
Mounting and Shipping Info
Exit Size
1 in
Bolt Circle Diameter
154.5 mm (6.08 in)
Depth
108 mm (4.25 in)
Net Weight
2.9 kg (6.39 lb)
Basket Material
Aluminium
Bolt Diameter
5 mm (0.2 in)
Overall Diameter
165 mm (6.5 in)
Baffle Cutout Diameter
145 mm (5.71 in)
Flange and Gasket Thickness
2.5 mm (0.1 in)
Shipping Units
2 pcs
Bolt Quantity
4 pcs
