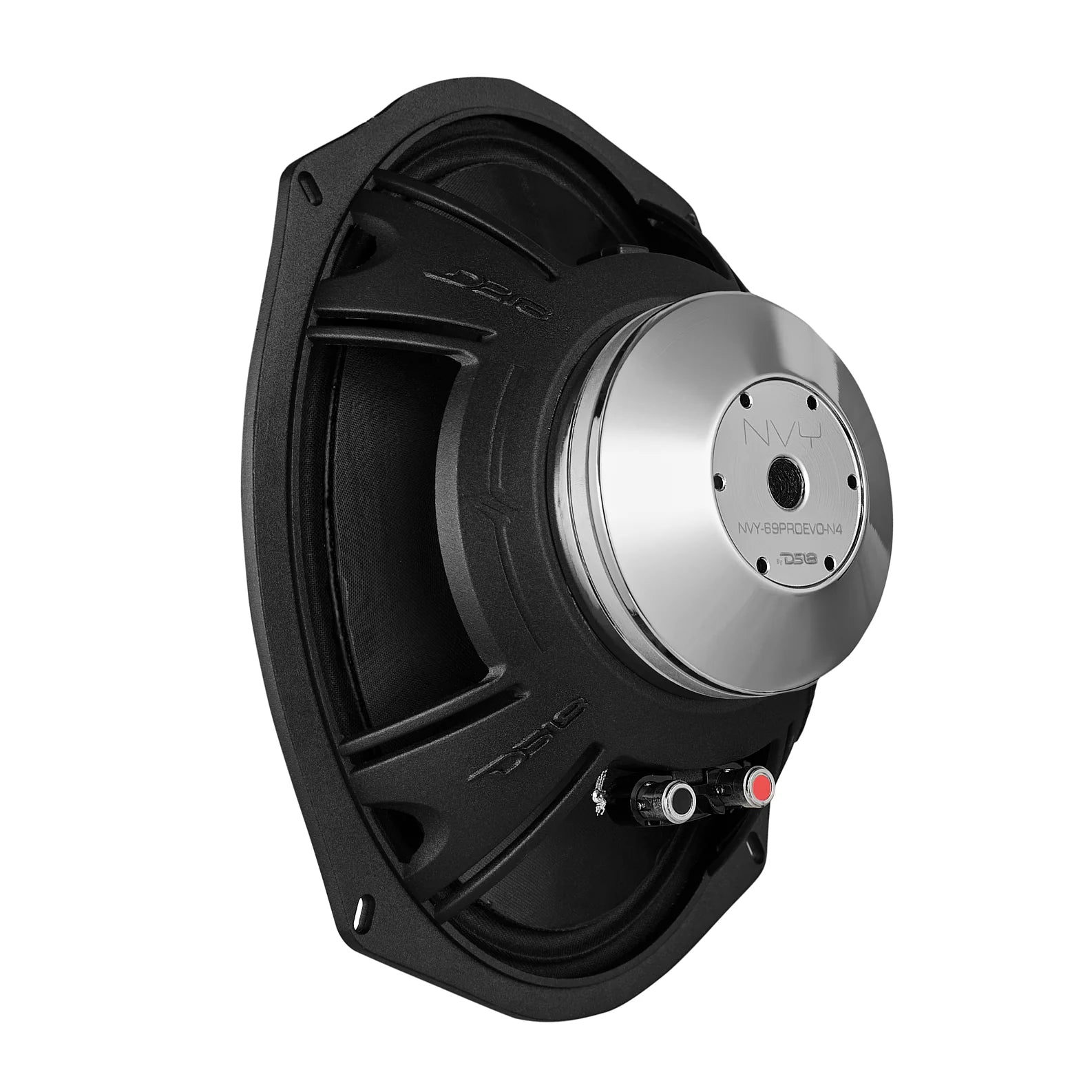

DS18 NVY-69PROEVO-N4 6x9” Full-Range Neodymium Speaker With Water-Resistant Cone | 250W RMS 4-Ohm
Couldn't load pickup availability
Quality Assurance
Friendly support
Hassle-free returns
Payment details
Help your customers identify what payments are accepted by your store.
-
Glass Fiber + Foam Composite with Resin Cone
-
Full-Range Frequency Response
-
Perfect for Motorcycles and Powersports
-
Water-Resistant IP65
-
Neodymium Magnet
-
Aluminum
Basket
Built For All Elements
An IP65-rated, resin-treated cone and sealed internals make this speaker strong in marine, motorcycle, and powersport conditions.
Consistent Quality
A copper ribbon voice coil and spider-crossed leads preserve balance and output at high volume. It’s engineered to stay consistent—no distortion, no fatigue.
Designed For Your Ride
With push terminals, sealed internals, and a precisely contoured frame, install is simple and clean in all motorcycles and powersports builds.
- General Specifications
- Nominal Diameter: 6x9" / 146x217mm
- Nominal Impedance: 4 Ohms
- RMS Power Handling: 250W
- MAX Power Handling: 500W
- Sensitivity (1w/1m): 96dB
- Frequency Response: 70Hz-16Khz
- Recommended High-Pass Crossover: 80Hz
- Sold in Pairs
- Body / Features
- Demodulating Rings: Yes
- Improved Heat Dissipation: Yes
- Cone Shape: Curvilinear
- Speaker Terminals: Push 14ga
- Waterproof Rating: IP65
- Motor Specifications
- Voice Coil Diameter: 1.5" / 38.5mm
- Voice Coil Former Material: TIL
- Winding Material: Copper Ribbon
- Cone Material: Water-Resistant Glass Fiber + Foam Composite with Resin Finish
- Dust Cap Material: Water-Resistant Glass Fiber + Foam Composite with Resin Finish
- Surround Material: Treated Cloth
- Leads Connection Type: Spider Crossed
- Basket Material: Aluminum
- Basket Color/Finish: Black
- Magnet Material: Neodymium
- Magnet Weight: 5.1 Oz
- Thiele & Small Parameters
- Equivalent Volume: 23.72L / 0.837ft3
- Excursion (one way): 2mm
- Free Air Resonance: 68Hz
- Mechanical Factor: 10.76
- Electrical Factor: 0.7
- Total Factor: 0.66
- Mechanical Mass: 24.634g
- Mechanical Compliance: 0.298mm/N
- BL Factor: 6.34
- Voice Coil Inductance: 0.175mH
- Cone Area: 226.98cm2
- DC Resistance: 3.9 Ohms
- Mechanical Mass w/o air: 21.1g
- Speaker Measurement
- Overall Diameter: 6.4x9.1" / 163x232mm
- Overall Depth: 3.6" / 92mm
- Front Mount Baffle Cutout: 5.7x8.6" / 146x217mm
- Mounting Depth: 3.4" / 86mm
- Motor Diameter: 3.54" / 90mm
